In OZmob you can view boxes, but it is not possible to add them through the app. However, there is a set of information that is useful in the field.

Your boxes will appear like this on the map:

To view the names of the boxes, click the "Names" button:

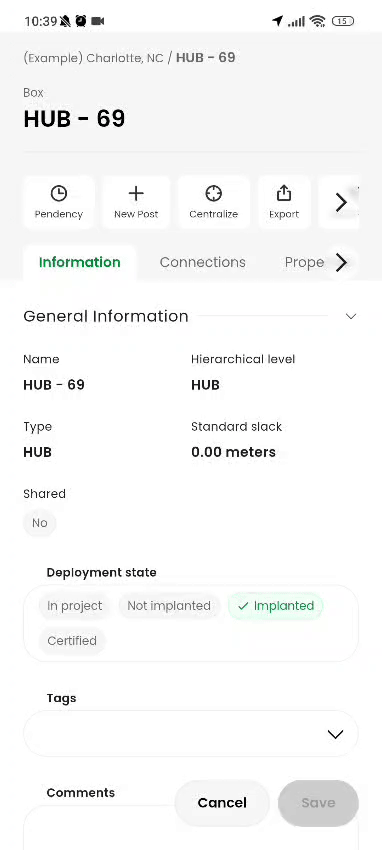

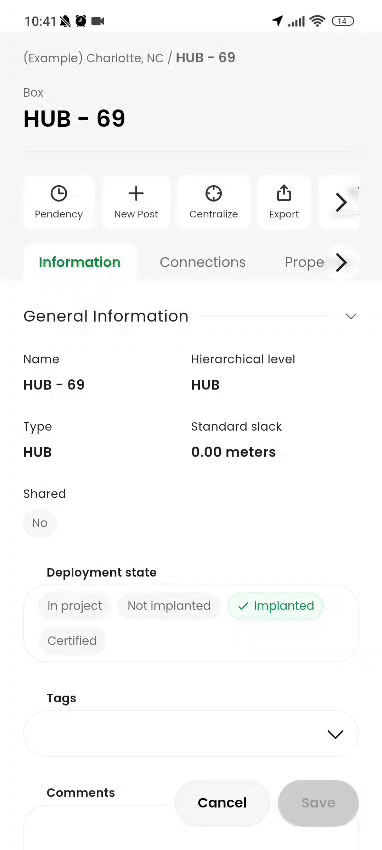

When you open a box, you will see three tabs. The first tab is the Information tab, where box details are displayed, including name, type, deployment status, and location. If this box is connected to a pole, you can check its details under the "Related elements" section.

Switching to the Connections tab, you can view the box’s internal connections, both in list format and in diagram format.

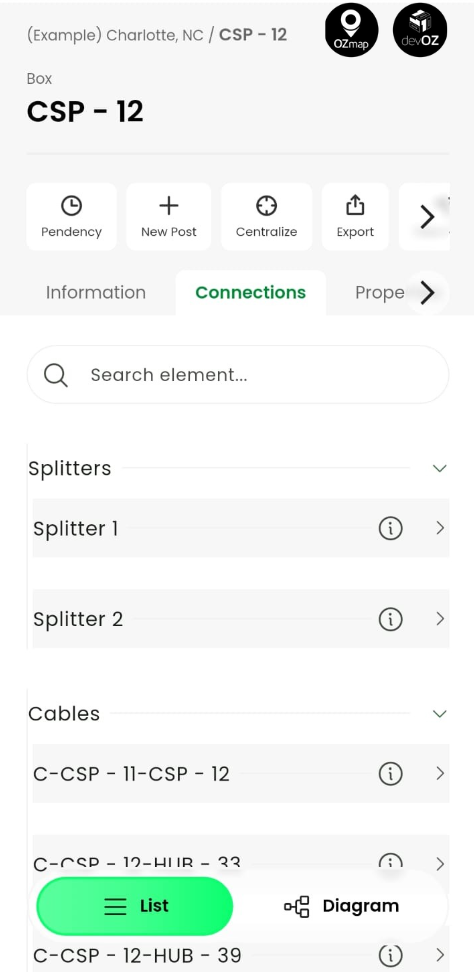

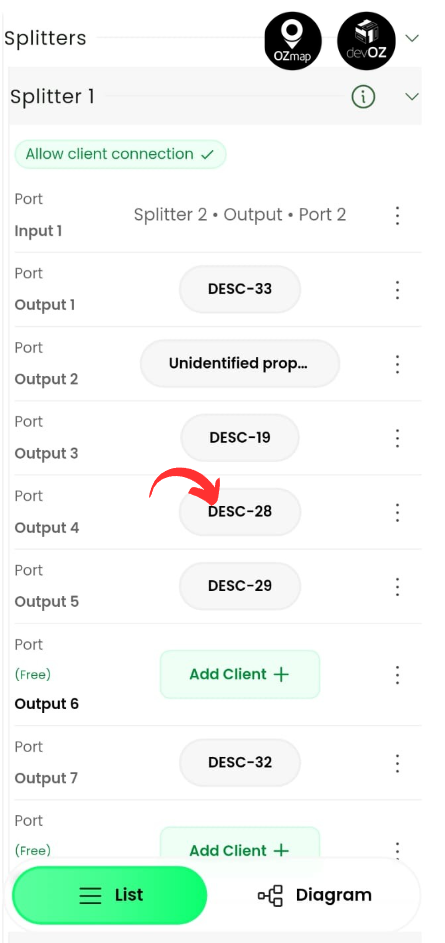

In this example, there are two splitters and two cables inside the box. The list is made up of the element name and the ports/fibers with their respective details, which can be viewed by clicking the expand button ">".

You can also view the route to the box and open it in the maps app of your choice. To do this, click the "View Route" button.

Diagram

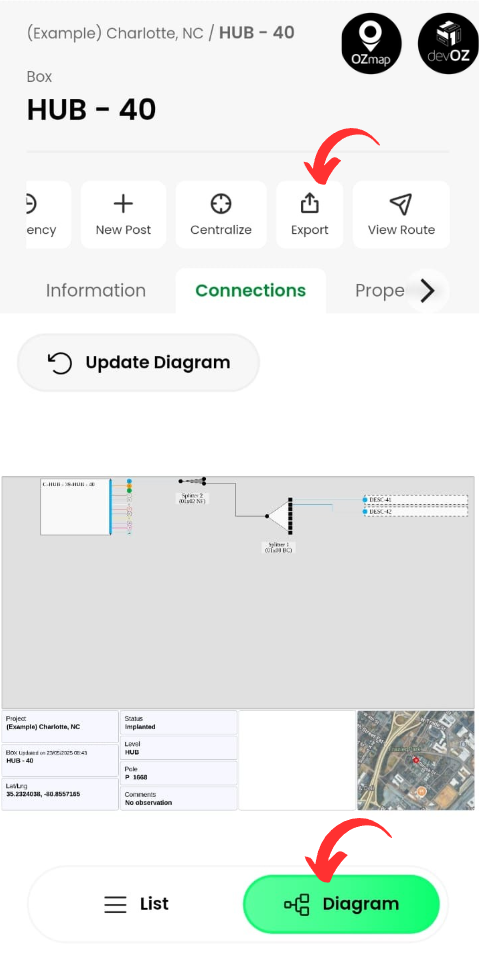

To view the diagram, click the "Diagram" button. To download it as a PDF or PNG, just click the "Export" button.

OTDR

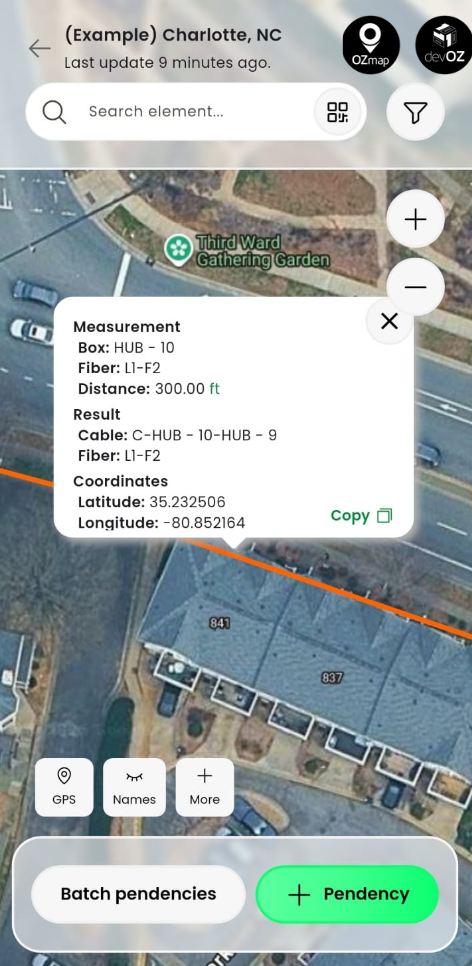

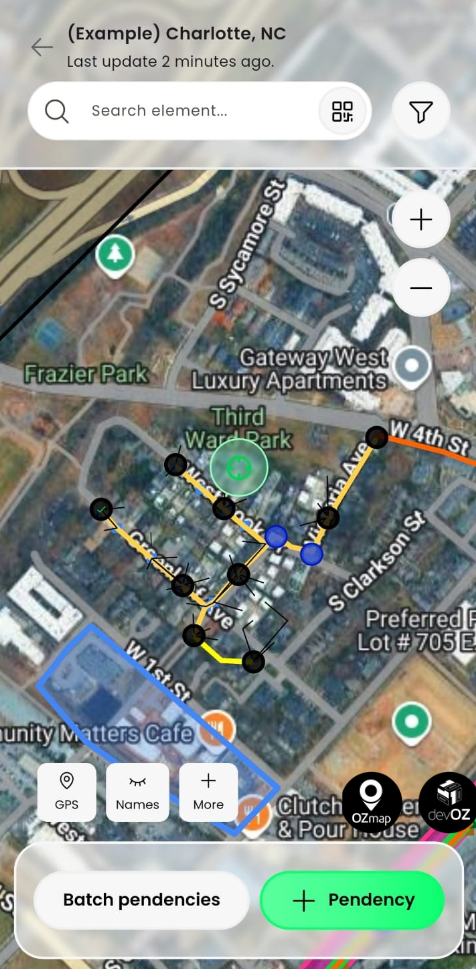

You can also view on the map where your OTDR markings are reaching.

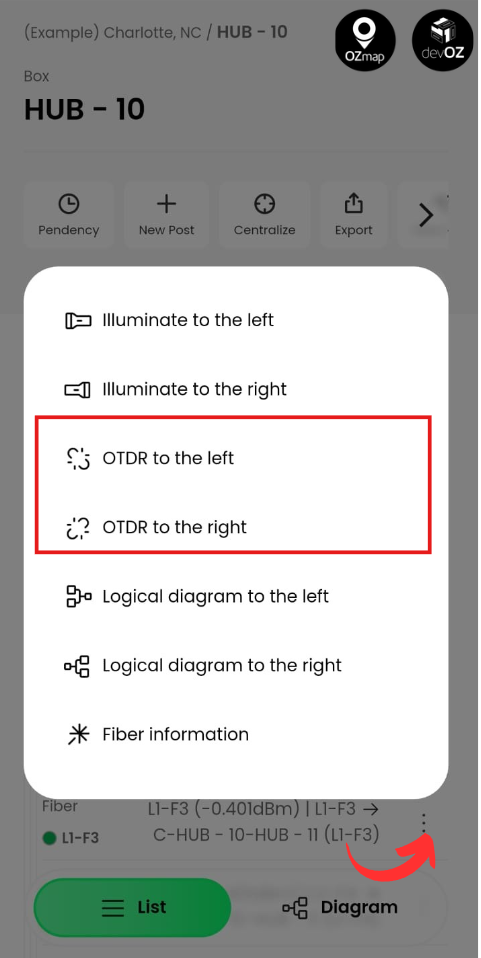

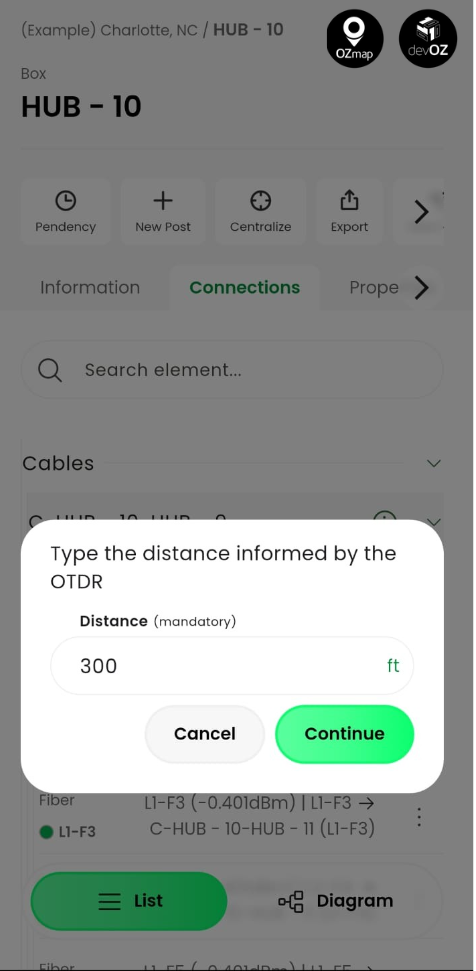

To do this, select whether it is being done to the left or to the right. Select a box element to make the marking, and then enter a distance.

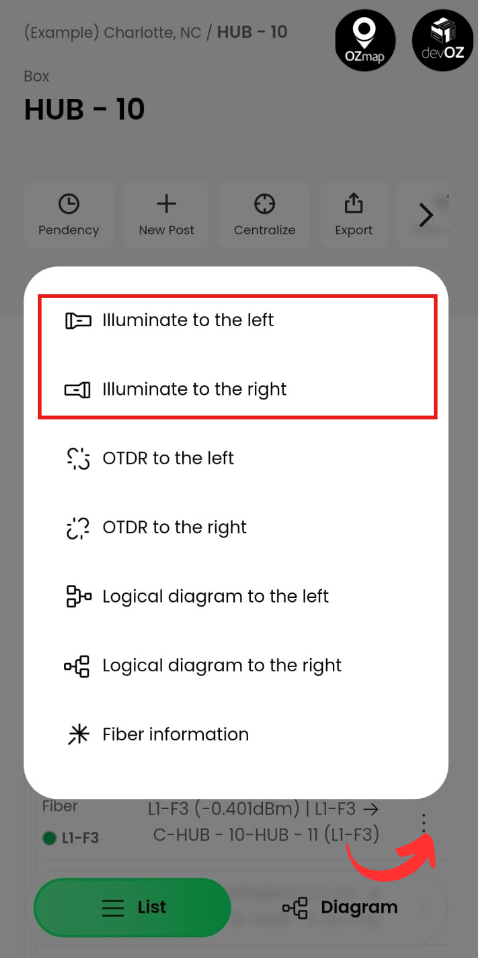

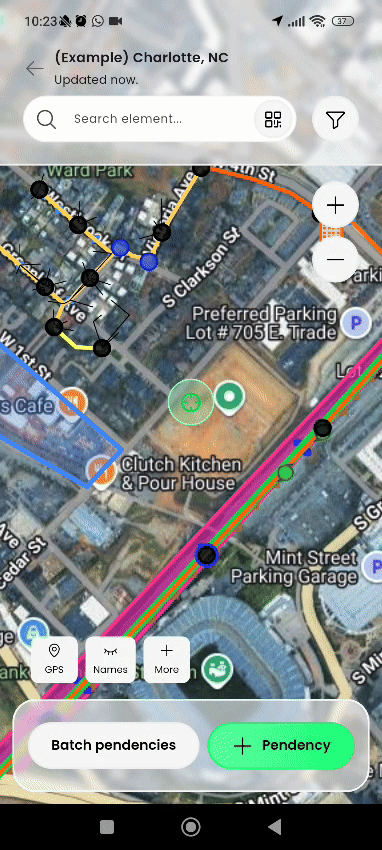

It is possible to illuminate the fibers in the box to visualize the path they follow. Click the three-dot icon on the desired fiber and select the "Illuminate to the left/right" option.

To generate a logical diagram for the box, the procedure is similar to illumination; select the "Generate logical diagram to the left/right" option.

Posts

To view posts and create new posts for the box, go to the "Posts" tab.

Pendencies

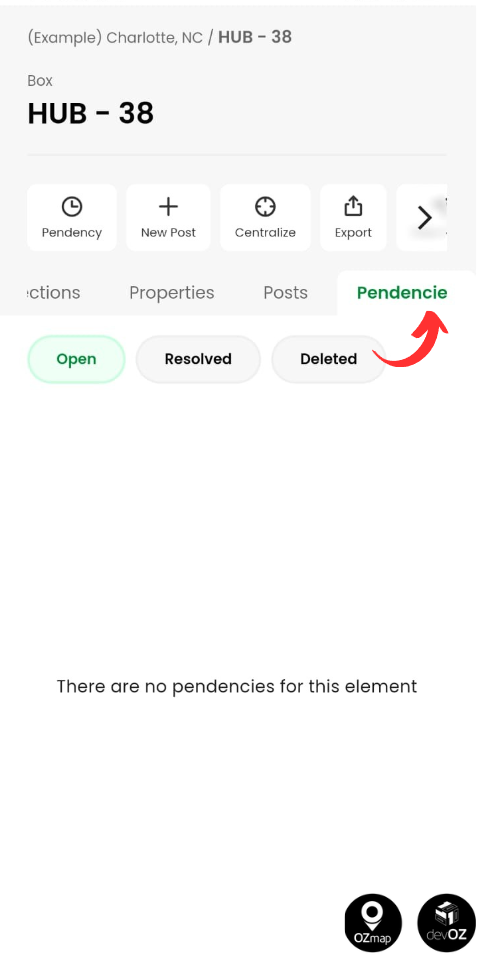

In the "Pendencies" tab, you will see all the pendencies linked to the box, and you can filter them by open, resolved, or deleted.
